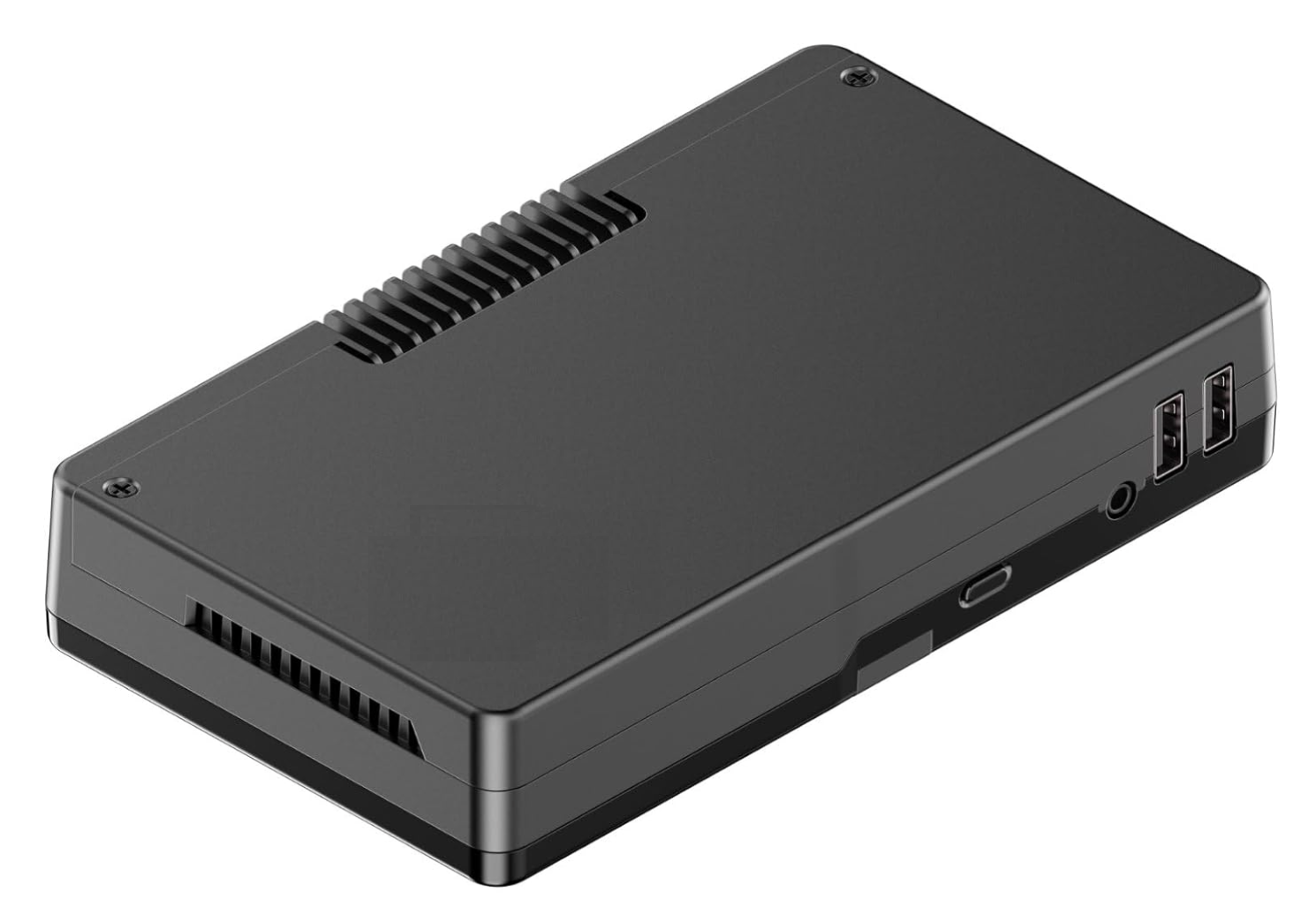

TrakRF™ Edge Server - Your Gateway to the Cloud

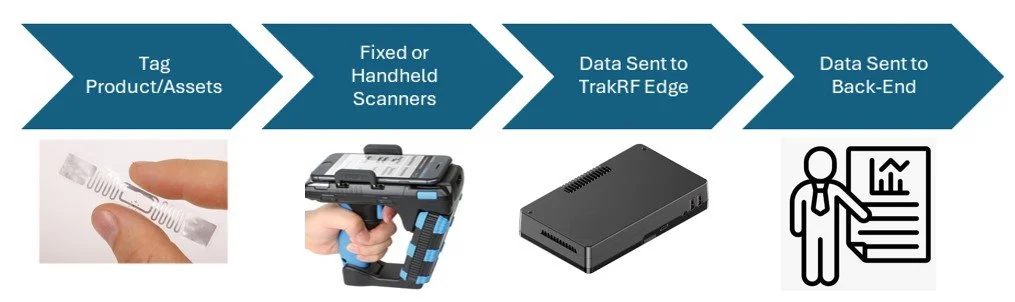

The TrakRF™ Edge Server is a sensor-based device with middleware that serves as an application layer between RFID/BLE readers and enterprise applications, processing data streams, filtering redundant tag reads, and facilitating data exchange for applications in asset tracking and inventory management.

Data Processing: It manages events from RFID readers, filters out redundant or irrelevant data, and converts data formats.

Data Exchange: It provides APIs, web services, or connectors to enable bidirectional data exchange between RFID systems and business applications.

Device Management: It can manage RFID devices, including readers, printers, and sensors, from central or distributed locations.

Integration: It facilitates integration with various enterprise applications, such as Supply Chain Management (SCM), Warehouse Management System (WMS), and Enterprise Resource Planning (ERP).

Analytics and Reporting: The middleware may expand to include analytical and reporting capabilities.

Real-time visibility: Enables real-time tracking and visibility of assets and processes.

Automation: Facilitates automation of business processes by connecting RFID systems to enterprise applications.

Efficiency: Improves efficiency by filtering out unnecessary data and streamlining data exchange.

Scalability: Middleware often has a modular architecture, making it scalable and easy to upgrade.

Interoperability: Provides platform transparency to mask heterogeneity, enabling data exchange between different hardware and operating systems.

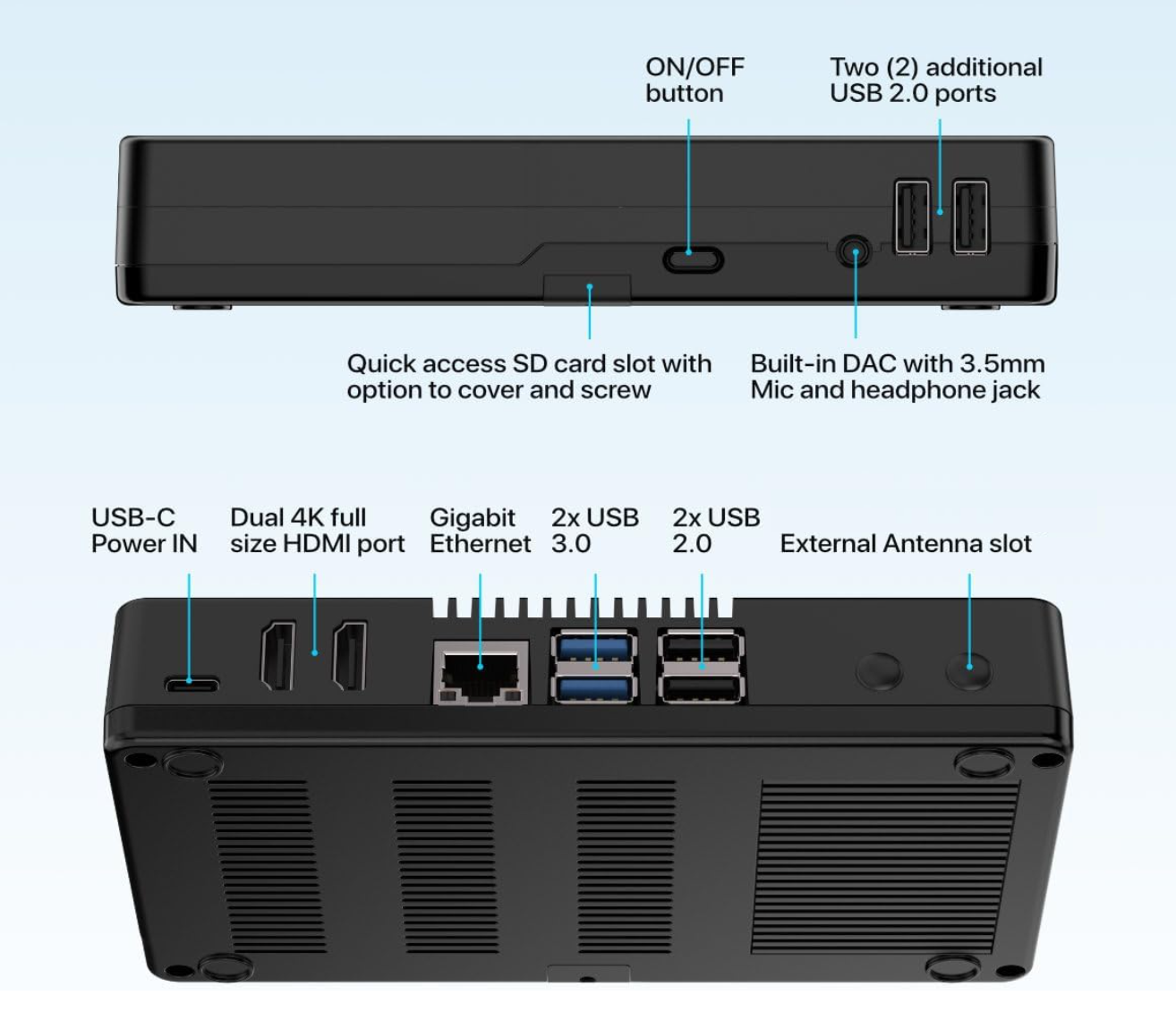

Processor Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU

Video Core VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2

Dual 4Kp60 HDMI® display output with HDR support

4Kp60 HEVC decoder

LPDDR4X-4267 SDRAM (options for 2GB, 4GB, 8GB and 16GB)

Dual-band 802.11ac Wi-Fi®

Bluetooth 5.0 / Bluetooth Low Energy (BLE)

microSD card slot, with support for high-speed SDR104 mode

2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

2 × USB 2.0 ports

Gigabit Ethernet, with PoE+ support

2 × 4-lane MIPI camera/display transceivers

5V/5A DC power via USB-C, with Power Delivery support

Standard 40-pin header

Real-time clock (RTC), powered from external battery

Specifications: (P/N: RC-TRAK-EDGE)
